"The Handy™" Handheld Digitizer
|
Features
- Internal batteries for wireless operation
- No mechanical positioner required
- High resolution mega-pixel digital camera
- Images stored in camera memory
- Multiple image merging software included
|

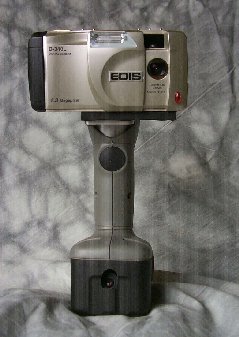

The Handy combines a sophisticated digital camera and the
proprietary EOIS Moire Interferometry technology to create a totally wireless
3D digitizer. It is the only high-speed 3D digitizer that can capture
data without being connected to a computer. The images are stored in a
sophisticated digital camera, and later sent to a computer for final processing.
Hardware Specifications
XY range - FOV (mm) |
200 x 200 |
Z range - DOF (mm) |
120 |
XY resolution - pixel spacing (mm) (1) |
0.2 |
Z resolution - accuracy (mm) (2) |
0.3 |
Standoff distance (mm) |
270 |
Capture speed (pix/sec) (3) |
300K |
Processing speed (pts/sec) (4) |
150K |
Size (mm) |
250 x 150 x 100 |
Weight (Kg) |
1.5 |
Camera resolution (pix) |
1280 x 960 |
Camera memory (images) |
32 (128 optional) |
Battery life (images) (5) |
200 |
Notes:
- X,Y resolution is determined by the number of pixels in the camera.
One XYZ data point is calculated for each pixel of the camera.
- Z resolution is essentially the same as the total XYZ accuracy of
the sensor. It is defined as the 3-sigma error between measured and
nominal XYZ coordinates, over the full range of the sensor. It is calculated
by measuring marked precision plates at several positions over the range
of the sensor.
- Capture speed indicates maximum sustained capture speed for multiple
images. A single image can be captured in less than one second (>1Mpix/sec).
- Processing speed does not include operator interaction time. Processing
speed given for typical EOIS supplied computer (PII/400Mhz).
- Battery life is 20 minutes (rechargeable).
Software Functions
- Image Editing
- Image merging (InnnovMetric
IMAlign software included)
- XYZ point reduction (space sampling)
- XYZ cross section calculation
- Output formats:
- IGS point clouds and cross-section lines
- STL polyface models
- ASCII text point clouds
- BMP greyscale images
- JPEG color images
Optional Software
- XYZ Model editing and optimization with full InnovMetric
Polyworks™ software.
Includes tools for Rapid Prototyping, Reverse Engineering and Model
Verification
|
